Hydraulic Cylinders, Low-Profile Cylinders

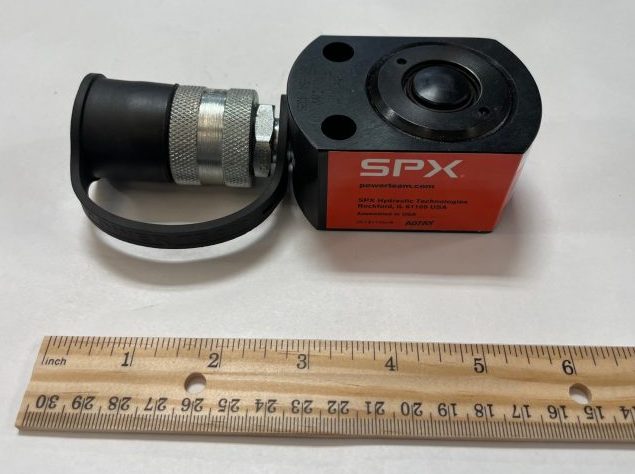

RLS100 Cylinder, 10 Ton, 7/16″ Stroke by Power Team
$601.12
10 Ton Hydraulic 7/16″ Low Profile Spring Return Cylinder RLS100
RLS100 CYLINDER, 10 TON, 7/16″ STROKE
Ideal for low-clearance or tight-constraint applications requiring high forces. Low height starting at 1.63″ to 4.00″. Cylinder body, piston, and gland nut are “Power-Tech” treated for corrosion and abrasion resistance. Standard dome piston rod (5-30 tons) or swivel cap (50-150 tons) minimizes effects of off-center loading. Unique heavy-duty spring provides fast piston return on all cylinders, except RLS50. Coupler is angled upward for extra clearance. Complies with ANSI/ASME B30.1 Safety Standards.
Latest posts by CourtneyDurham0602 (see all)
| Weight | 3.30 lbs |
|---|---|
| Oil Cap (cu. in.): | 1.00 |
| Int. Press. at Cap. (psi): | 8,943 |
| Tons at 10,000: | 11.18 |
